CR-10S - The stripping

The Stripping

Note: The publish date is two days after the work detailed on this entry.

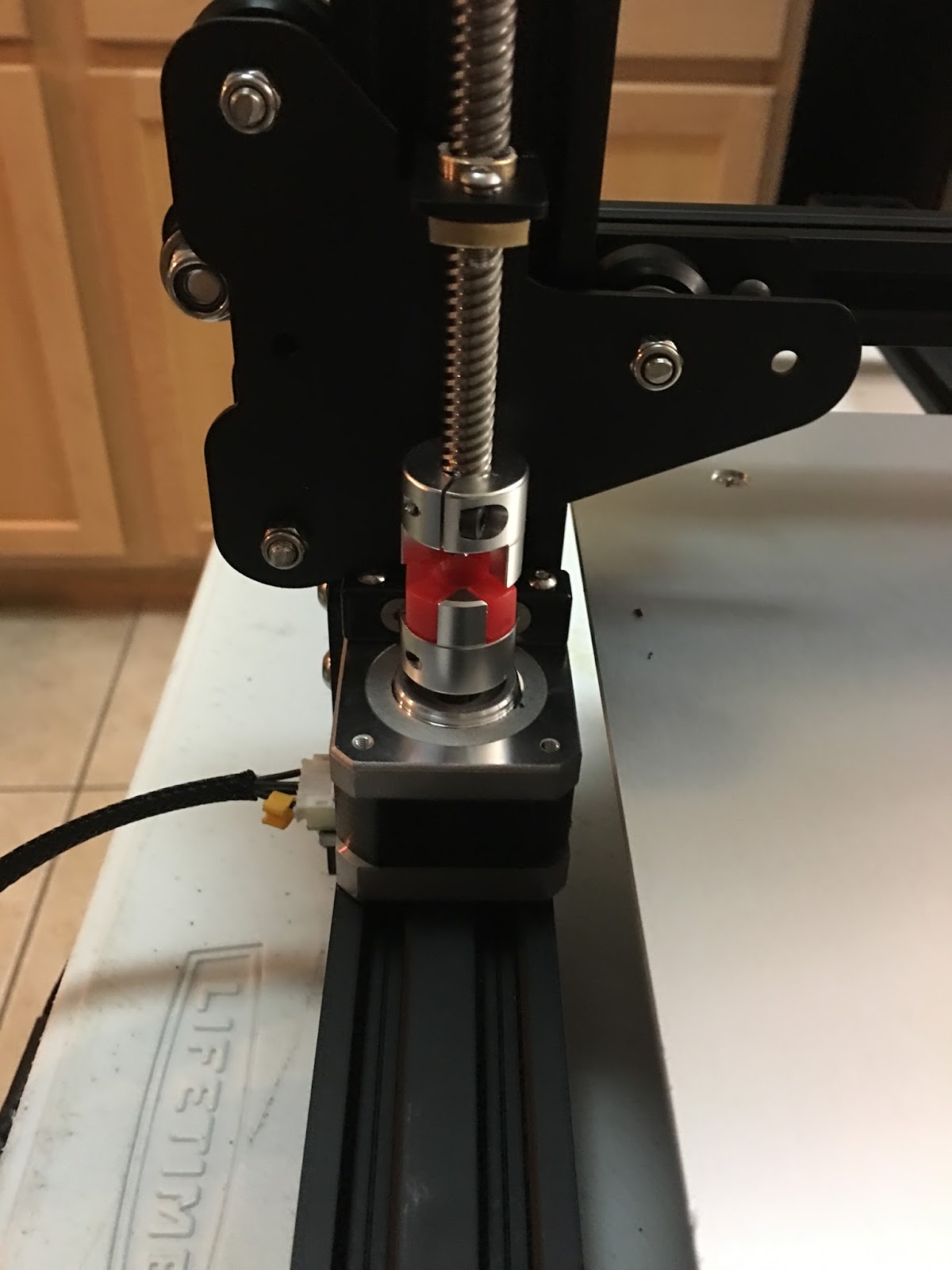

The CR-10S that was shipped to me comes with this kind of z-couplers:




In an effort to fix the x-axis problem I described on my previous blog entry i unsighted and re-tighned those couplers. You need to apply a "health" amount of torque to those screws to get the coupler to hold the motor shaft securely.

And of course I stripped the thread of one.

Looking on the web were to find a replacement found out the if you order them back from the manufacturer it may take up to 30-days to arrive.

USA-based distributors were out.

Bad luck.

Look a the first picture, how much thread is "wasted" by the small screws they gave us.
My solution was to put a longer screw and fortunately it grabbed enough "good threads" to work. Phew!
